Building mezzanine in Marousi

Steel mezzanine in a building in Marousi

Building mezzanine

A special project, a mezzanine for heavy loads, long spans and an irregular grid of load-bearing elements in the existing building

Building mezzanine in Marousi

A mezzanine for heavy loads, long spans and an irregular grid of load-bearing elements in the existing building. Before the mezzanine went in, the ground-floor columns were repaired at their base, with protection of the corroded rebar and increased confinement. The new steel beams were anchored to the existing concrete elements at positions marked on site.

Area: Marousi

Services we provided: Structural design. Construction

The construction step by step

Photos from the site, showing the installation of the steel mezzanine beams inside the existing building.

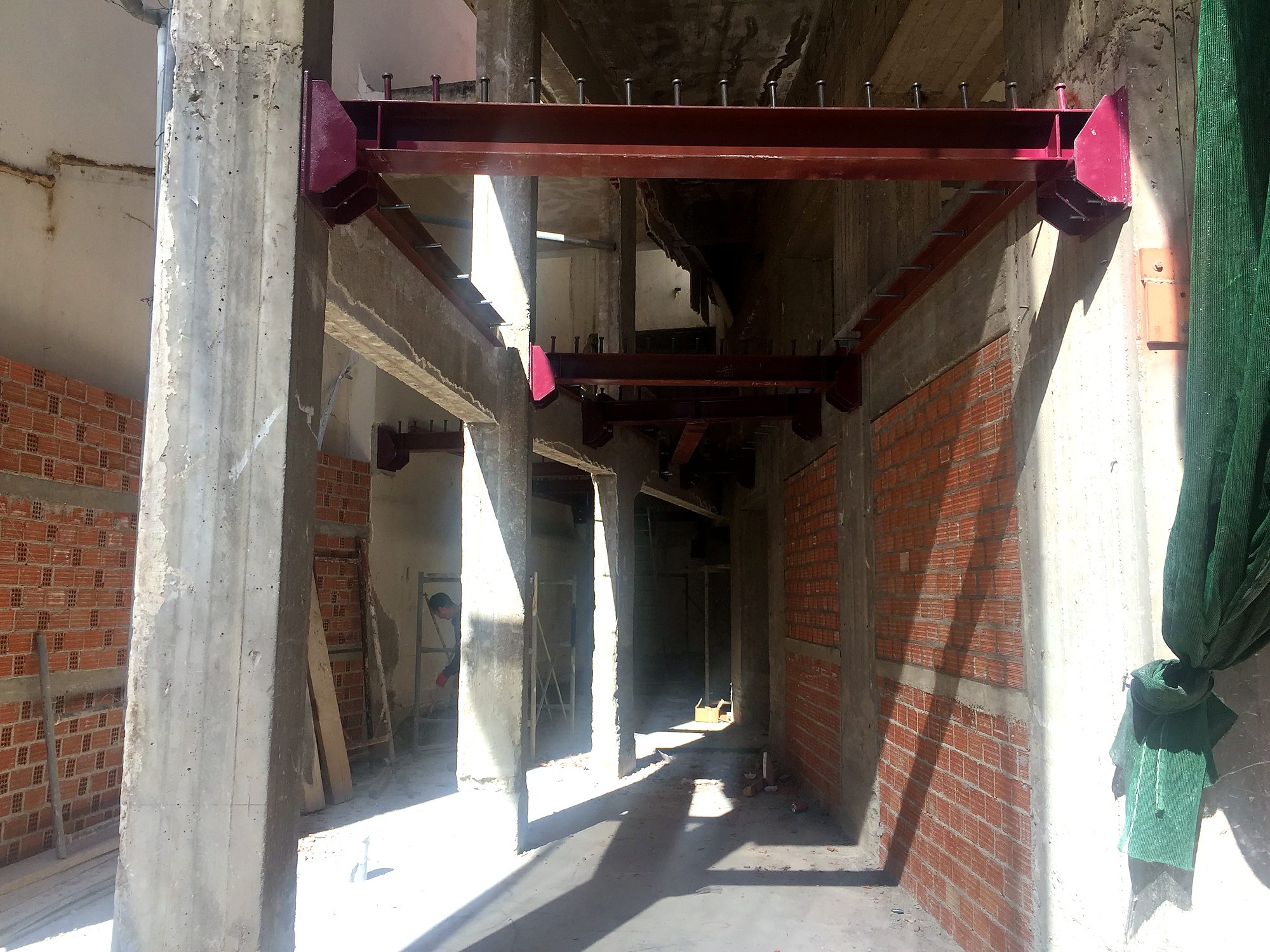

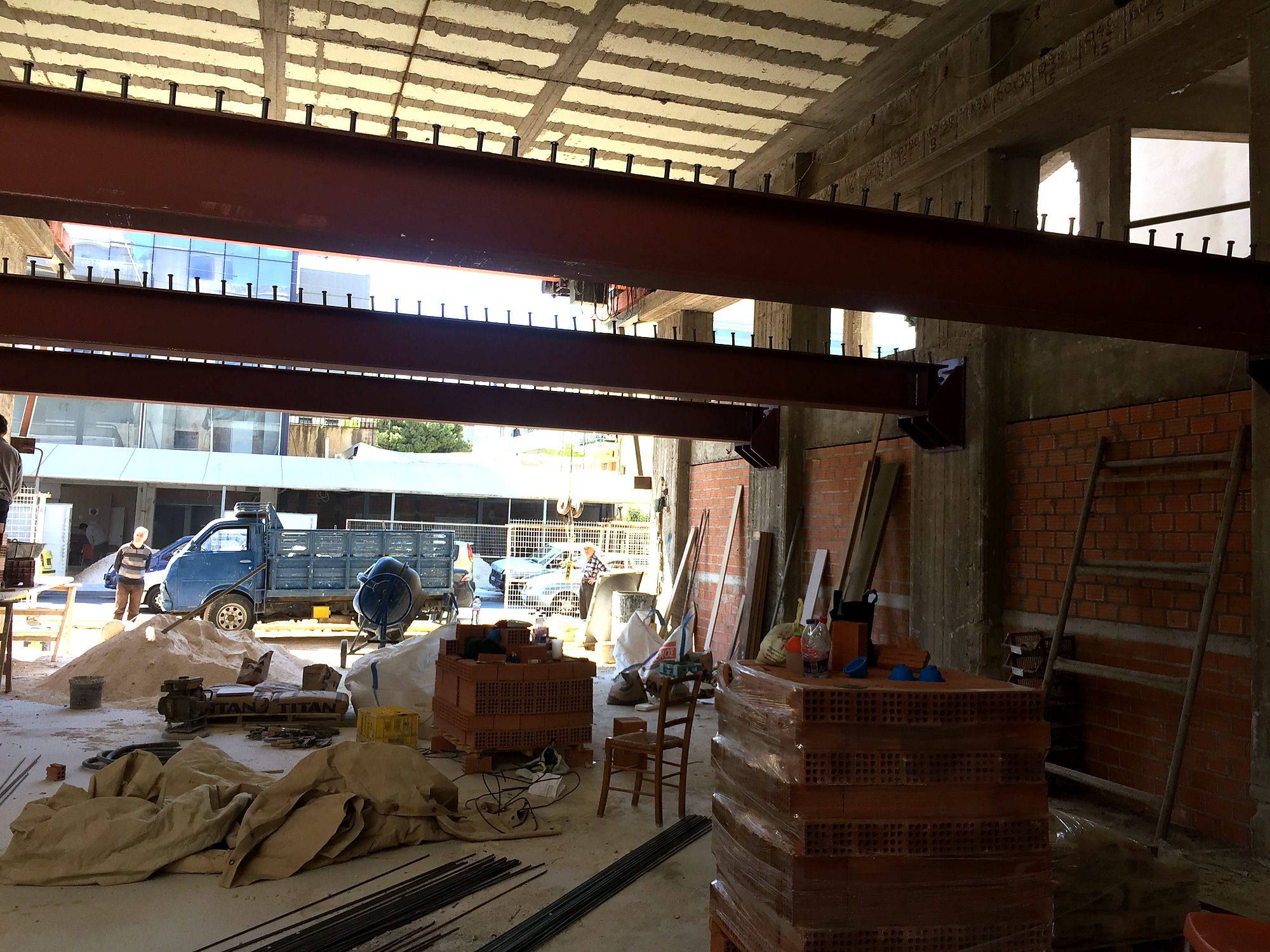

Steel beams of the new mezzanine resting on seats on existing concrete columns, Marousi
Steel mezzanine beams supported on existing columns
Marousi mezzanine
Another special mezzanine in the project

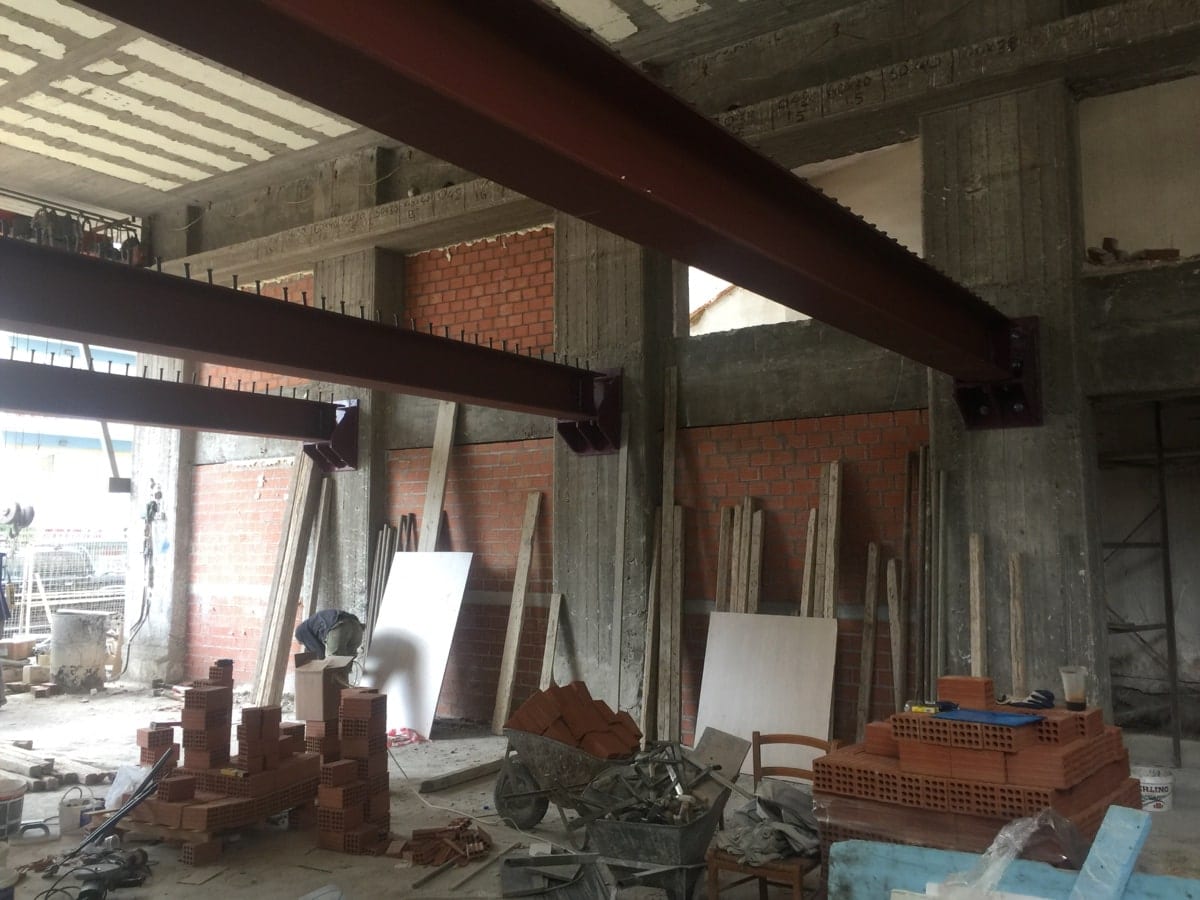

long span
A long span

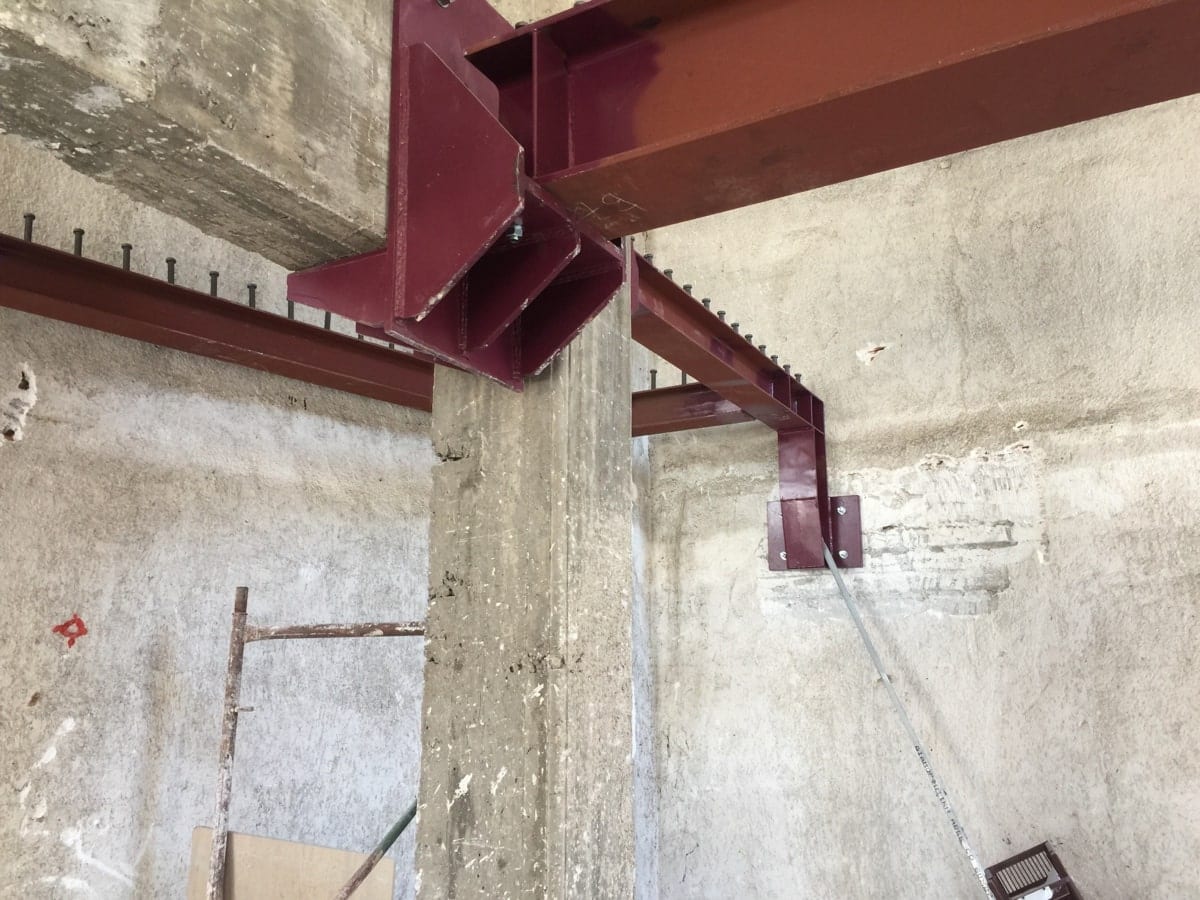

the beam seats
The beam seats

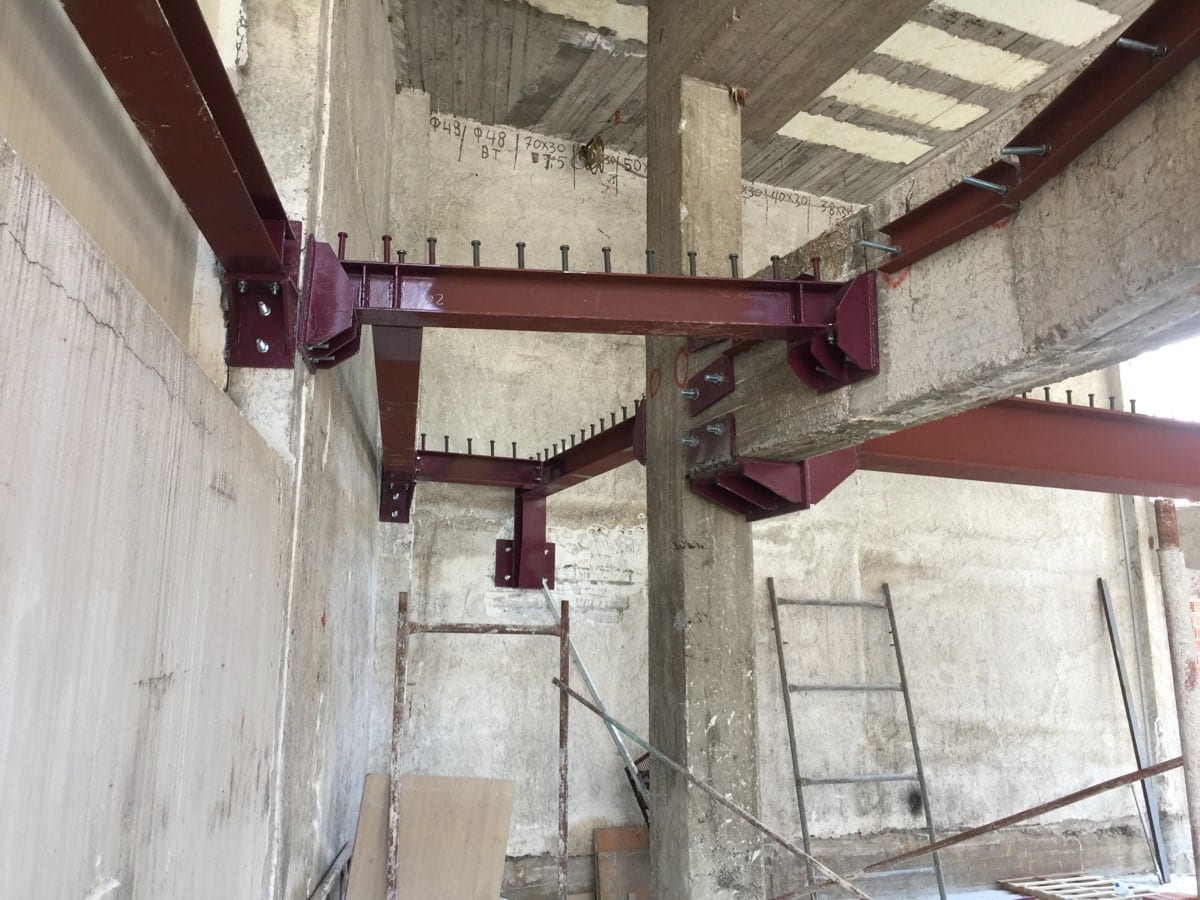

photo showing how demanding the project was 2
A photo that shows how demanding the project was
photo showing how demanding the project was 3
A photo that shows how demanding the project was
photo showing how demanding the project was
A photo that shows how demanding the project was

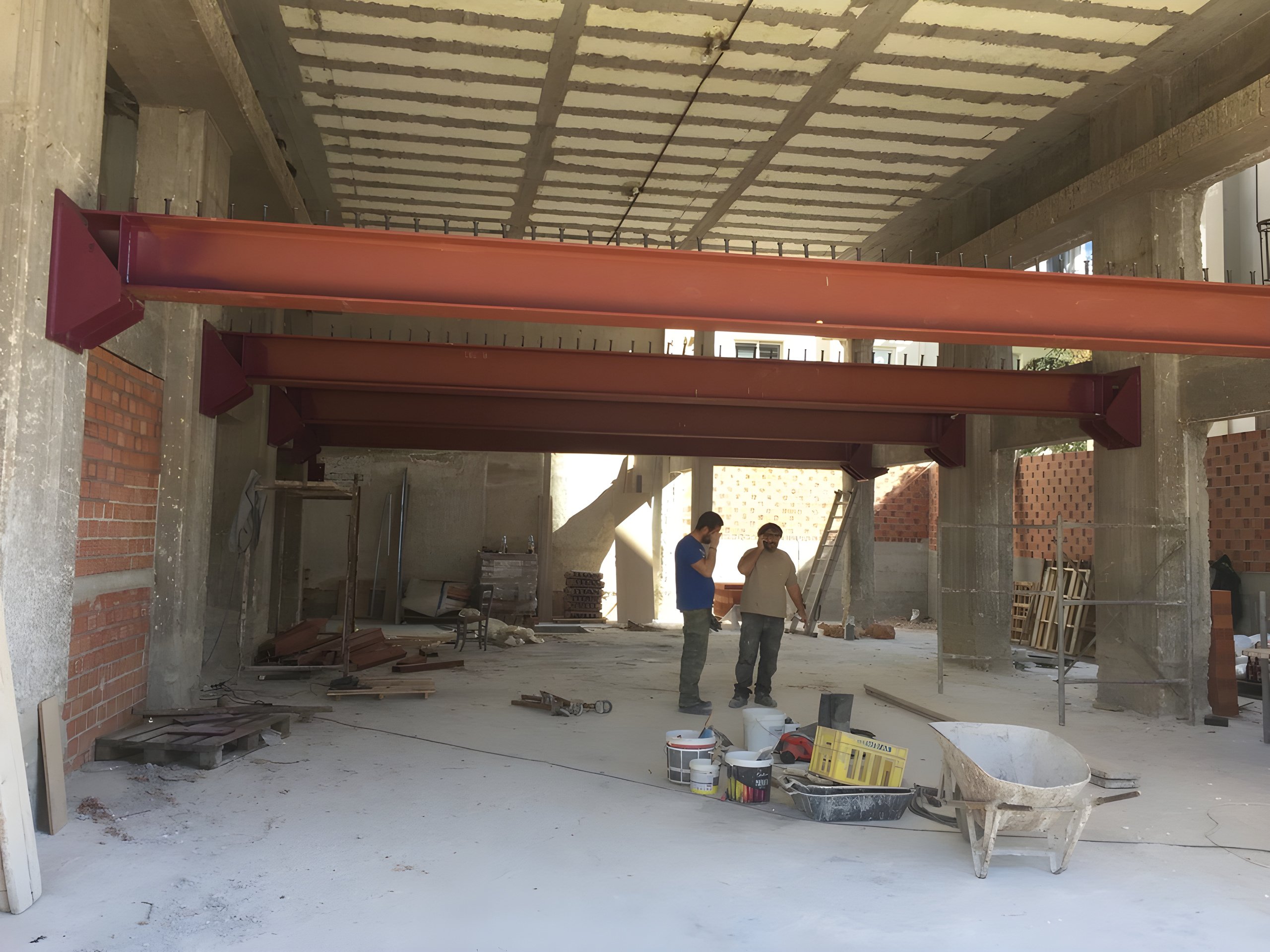

Steel beams of the new mezzanine placed inside an existing reinforced concrete building, Marousi, Attica
Beams of the new mezzanine inside the existing building

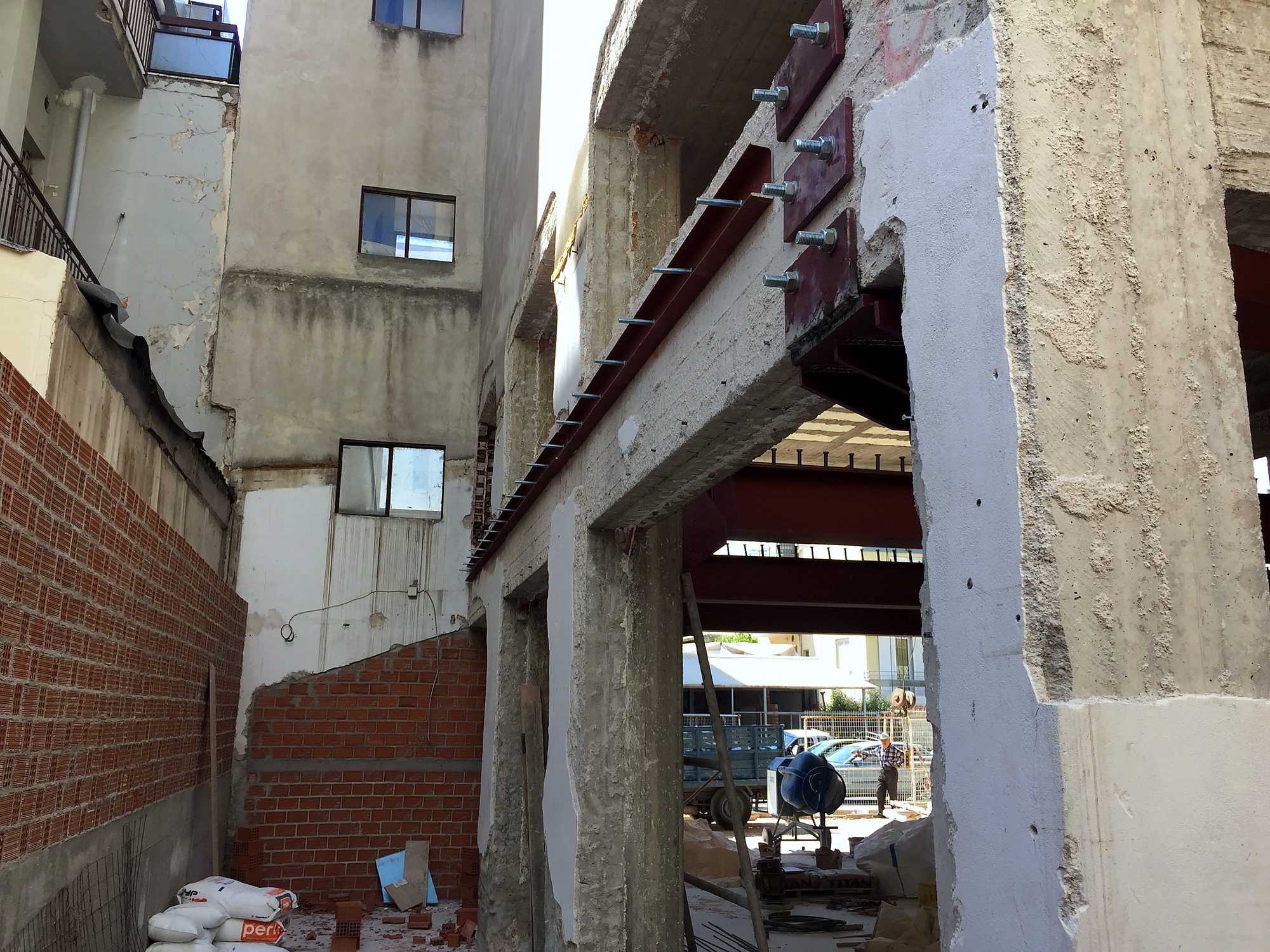

Perimeter steel mezzanine beam with shear studs along an existing building in Marousi
Perimeter mezzanine beam along the length of the building

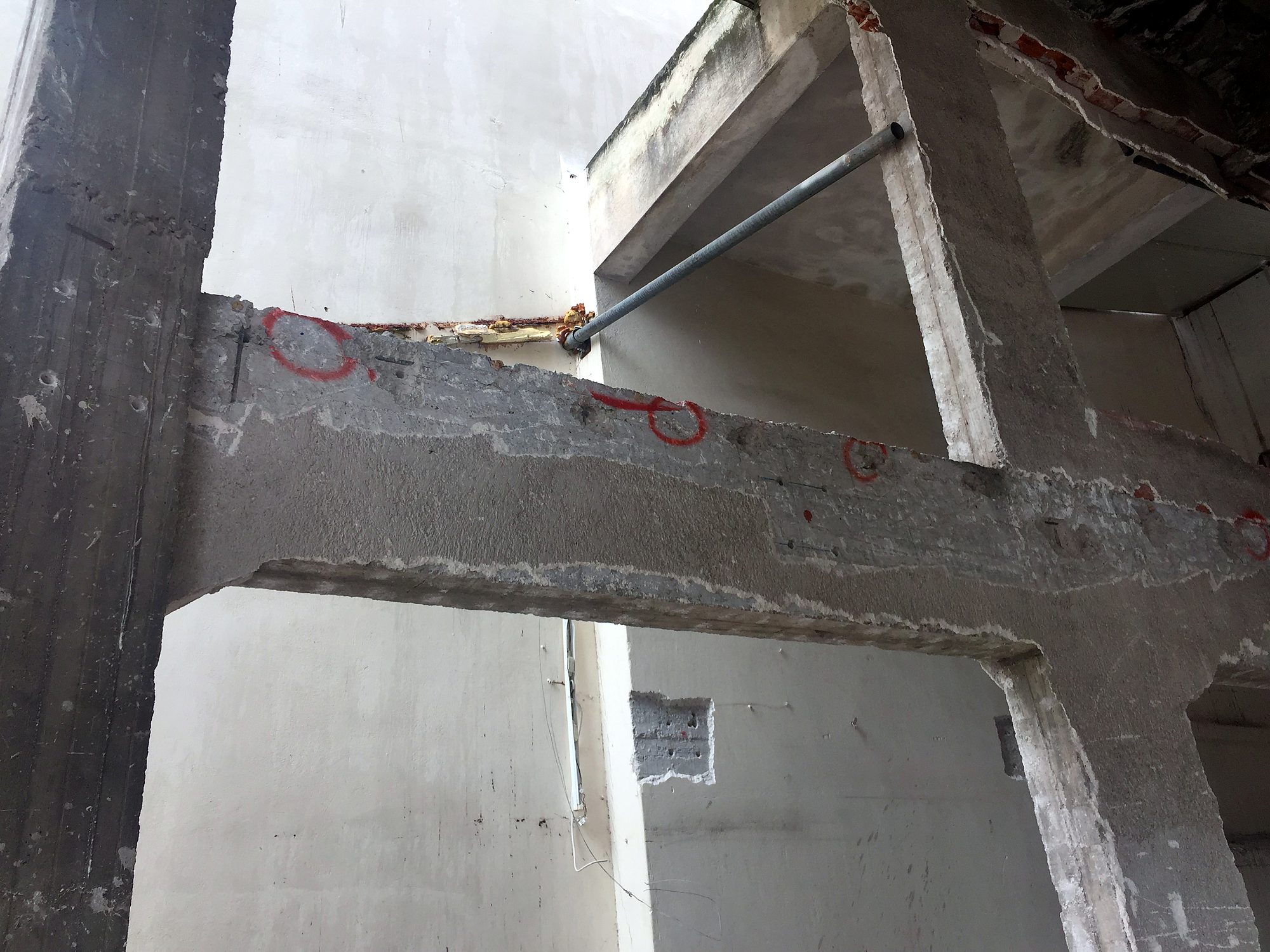

Anchor position marks on an existing concrete beam before connecting the steel members, Marousi, Attica
Marking the anchor positions on an existing beam

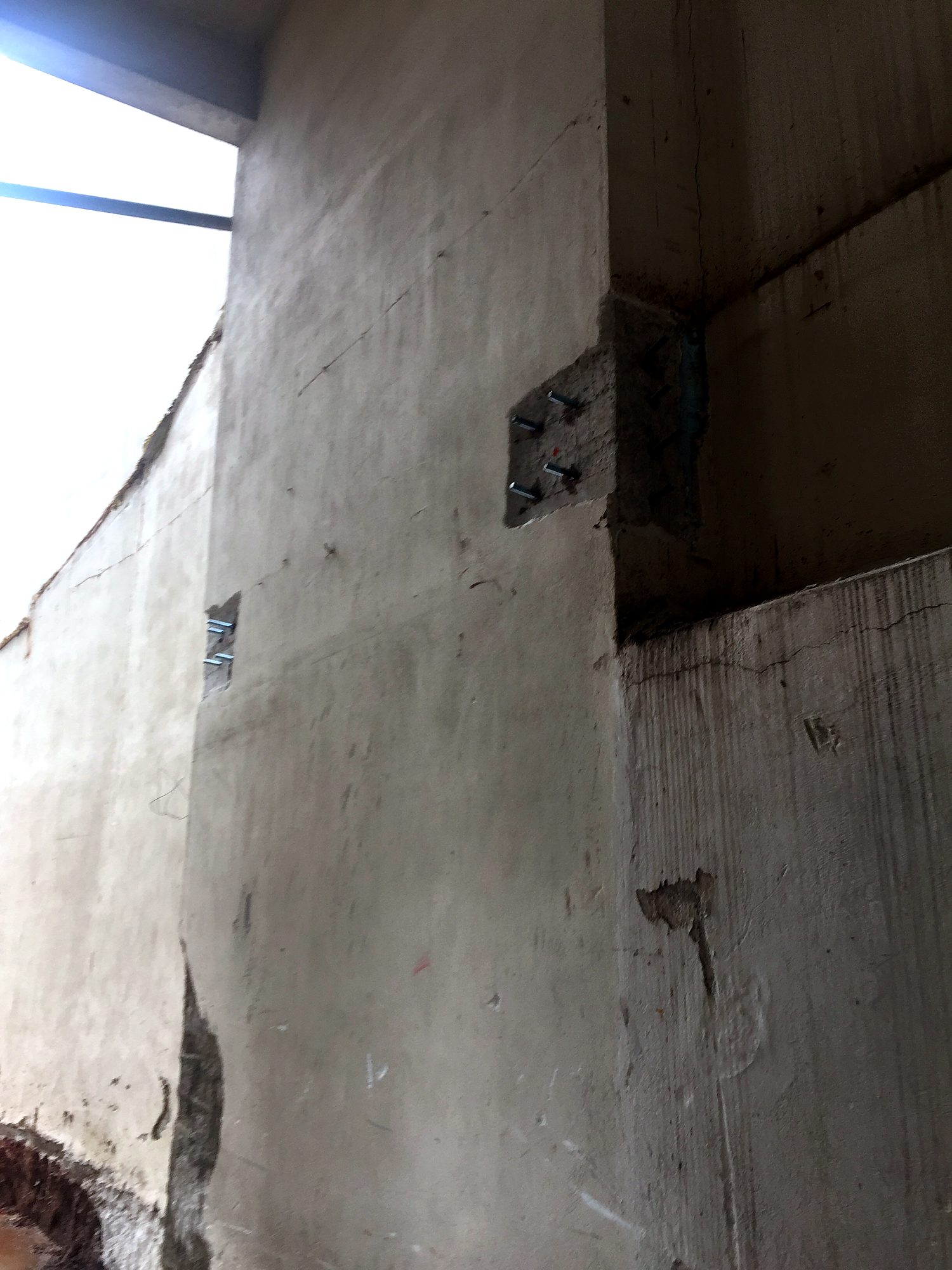

Steel bearing plate anchored to an existing concrete wall, building mezzanine in Marousi
Bearing plate anchored to a concrete wall

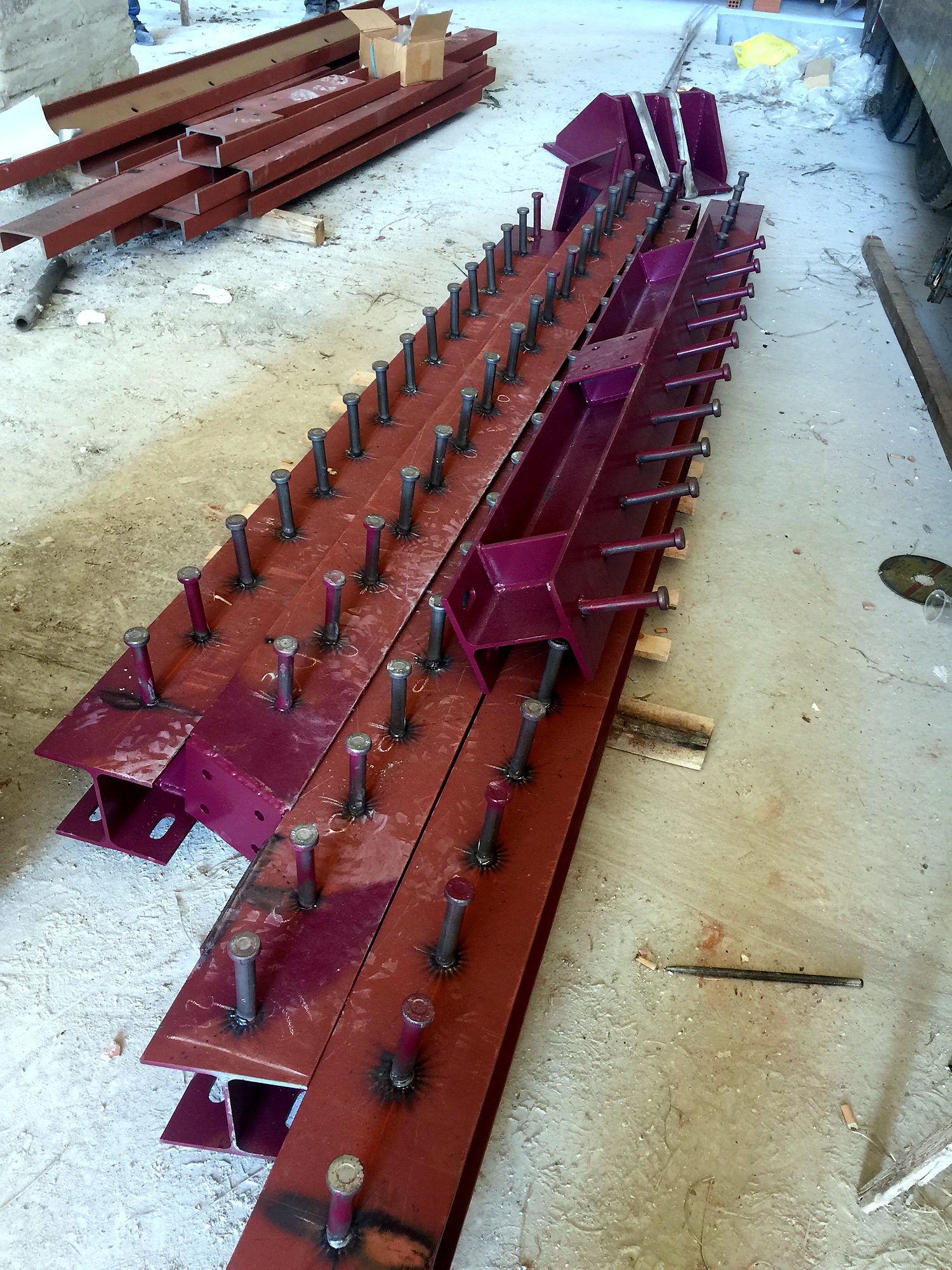

Steel beams with shear studs and bearing seats ready for installation, mezzanine in Marousi
Steel beams with shear studs and bearing seats

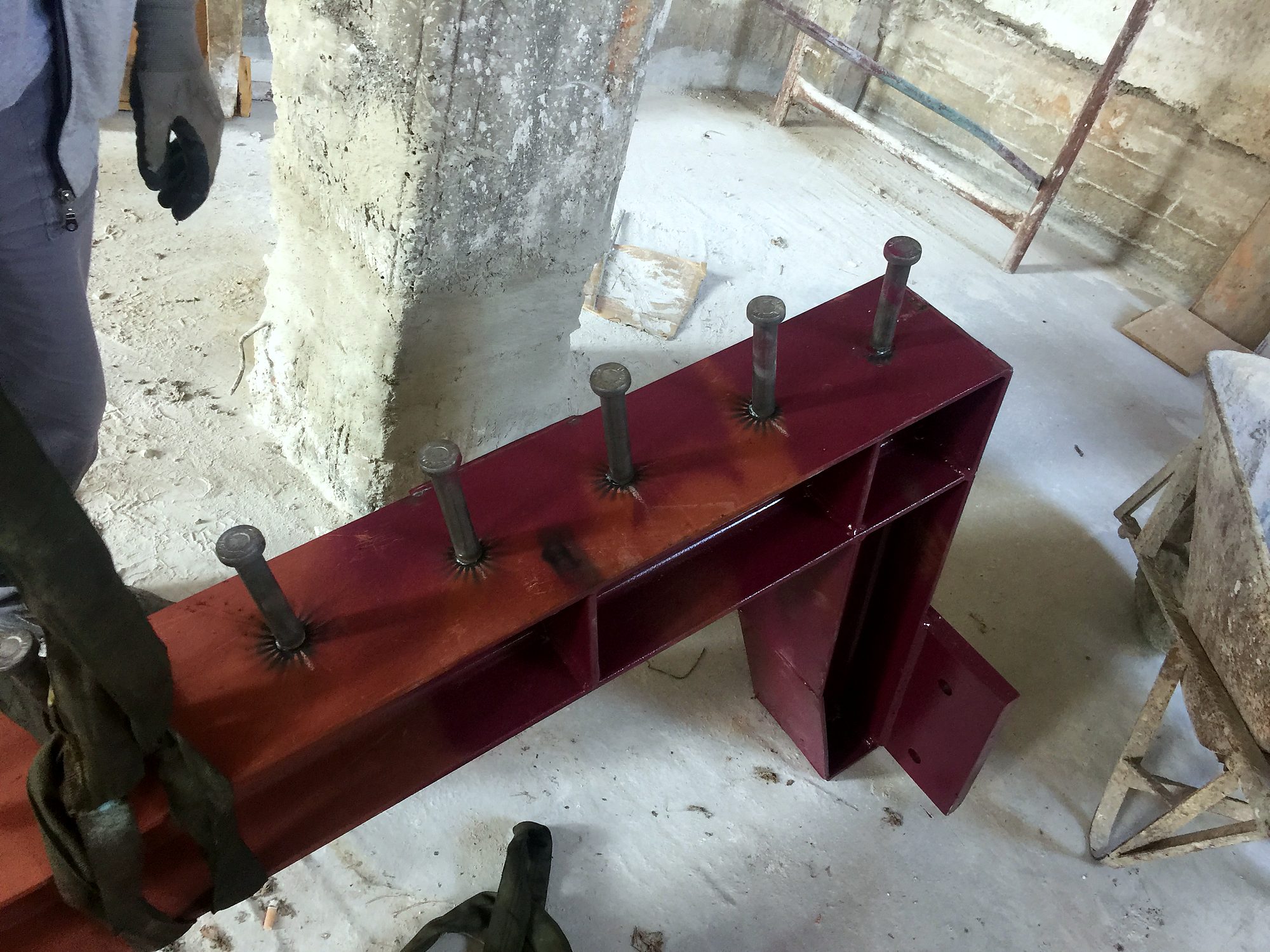

Detail of a steel beam with shear studs and a strengthened end for a composite slab, Marousi, Attica
Beam with shear studs and a strengthened bearing end

Photos that show how demanding the project was
