Store and house in Razata, Kefalonia. Dionysis Gianatos

Steel house

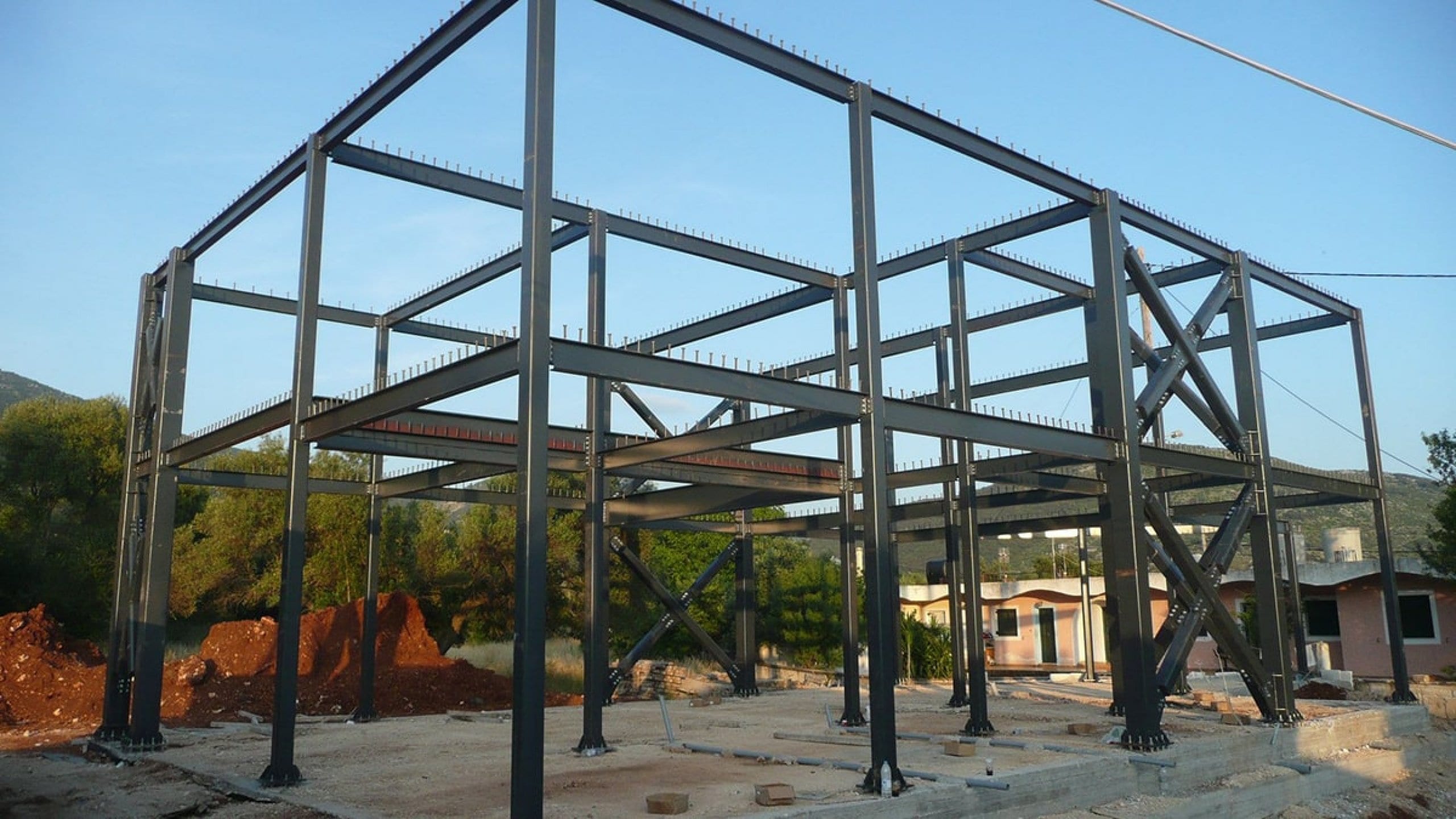

Store and house in Razata, Kefalonia. Dionysis Gianatos

Store and house

A steel and concrete building with a store and a house in Razata, Kefalonia. We did the structural design and erected the steel frame on a reinforced concrete foundation, with concrete slabs acting together with the steel beams. Apart from the high seismicity of the area, the only difficulty with this building was that the upper floor slabs are at different levels, and at the change in level we supported them on a double beam.

Area: Kefalonia

Permit and supervision:

Andreas Demponos

Civil Engineer, NTUA

Argostoli

Services we provided: Structural design and construction of the frame

The construction step by step

Photos from the site, from the foundation to the frame with the upper floor slabs.

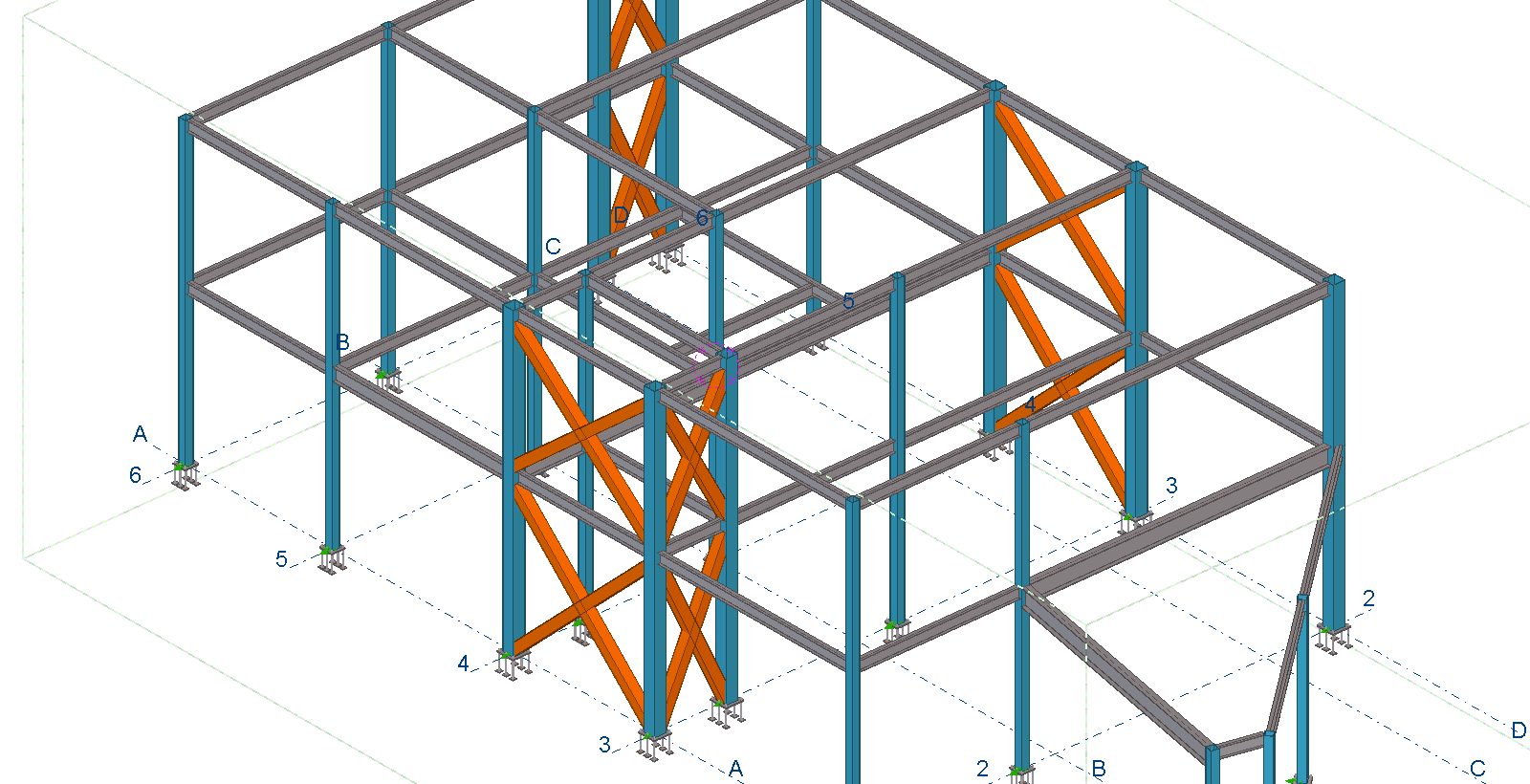

Steel frames with diagonal and cross bracing on a building in Razata, Kefalonia — Frames with diagonal and cross bracing

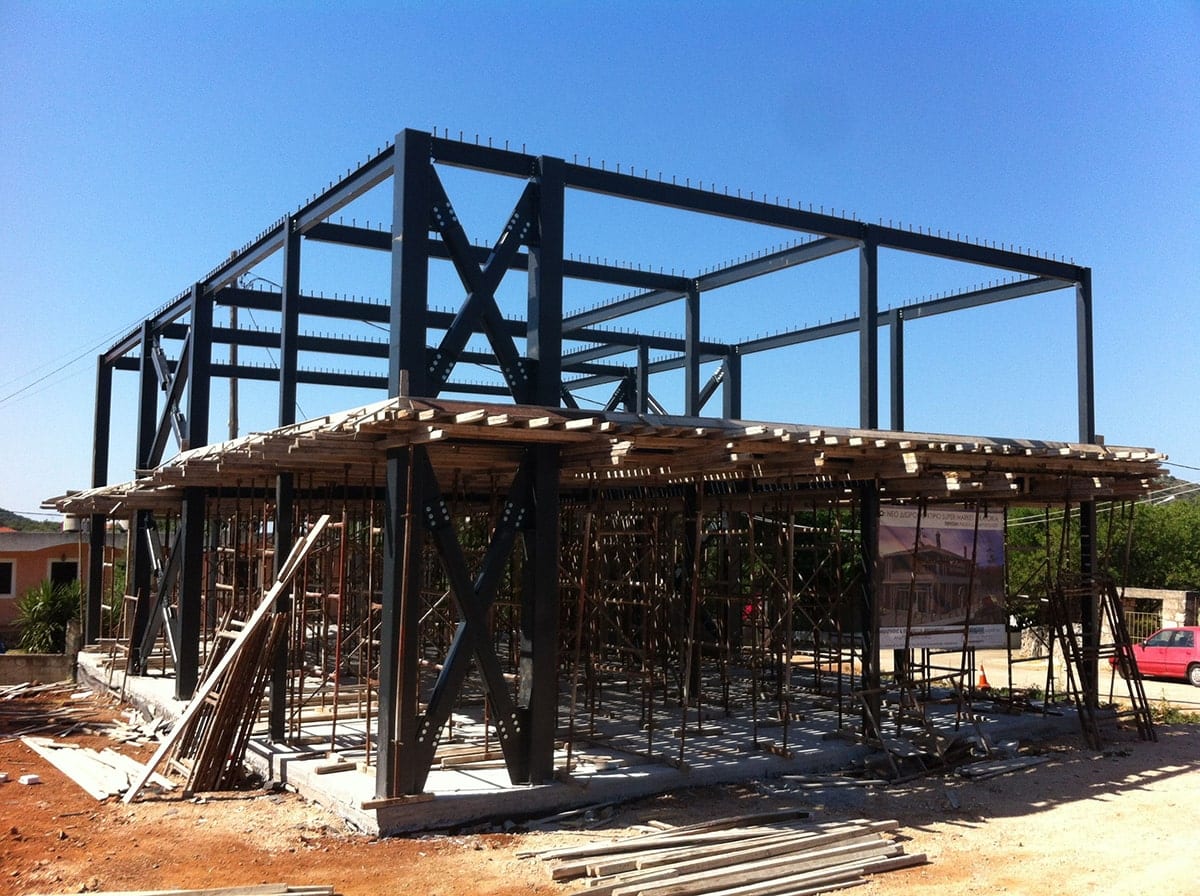

Steel and concrete structure during the slab pour at the store and house in Razata, Kefalonia — The frame while the reinforced concrete slabs were being poured

Substructure

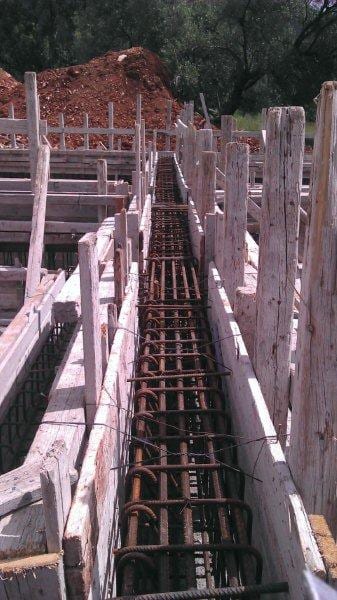

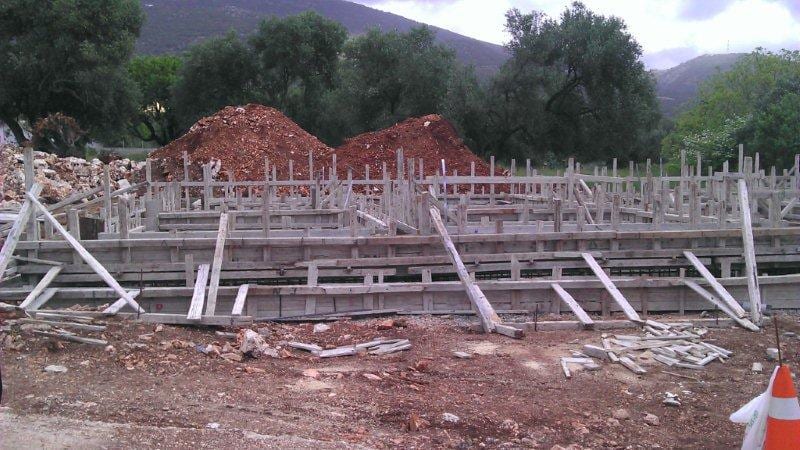

Strip footing rebar and formwork for anchoring the building in Razata, Kefalonia — Anchoring the steel building

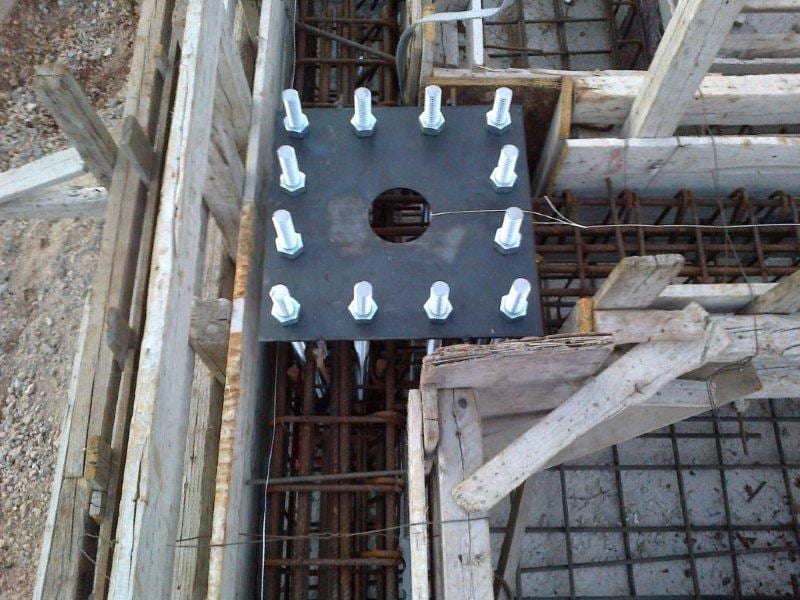

Base plate with anchor bolts set in the foundation rebar in Razata, Kefalonia — Anchoring the steel building

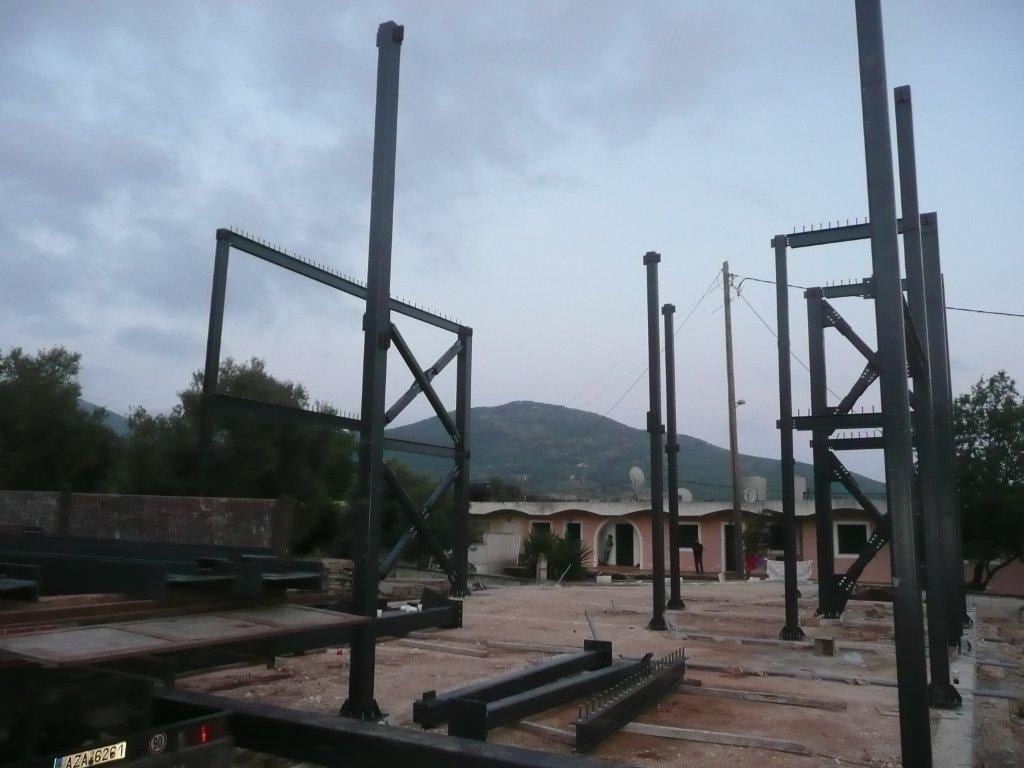

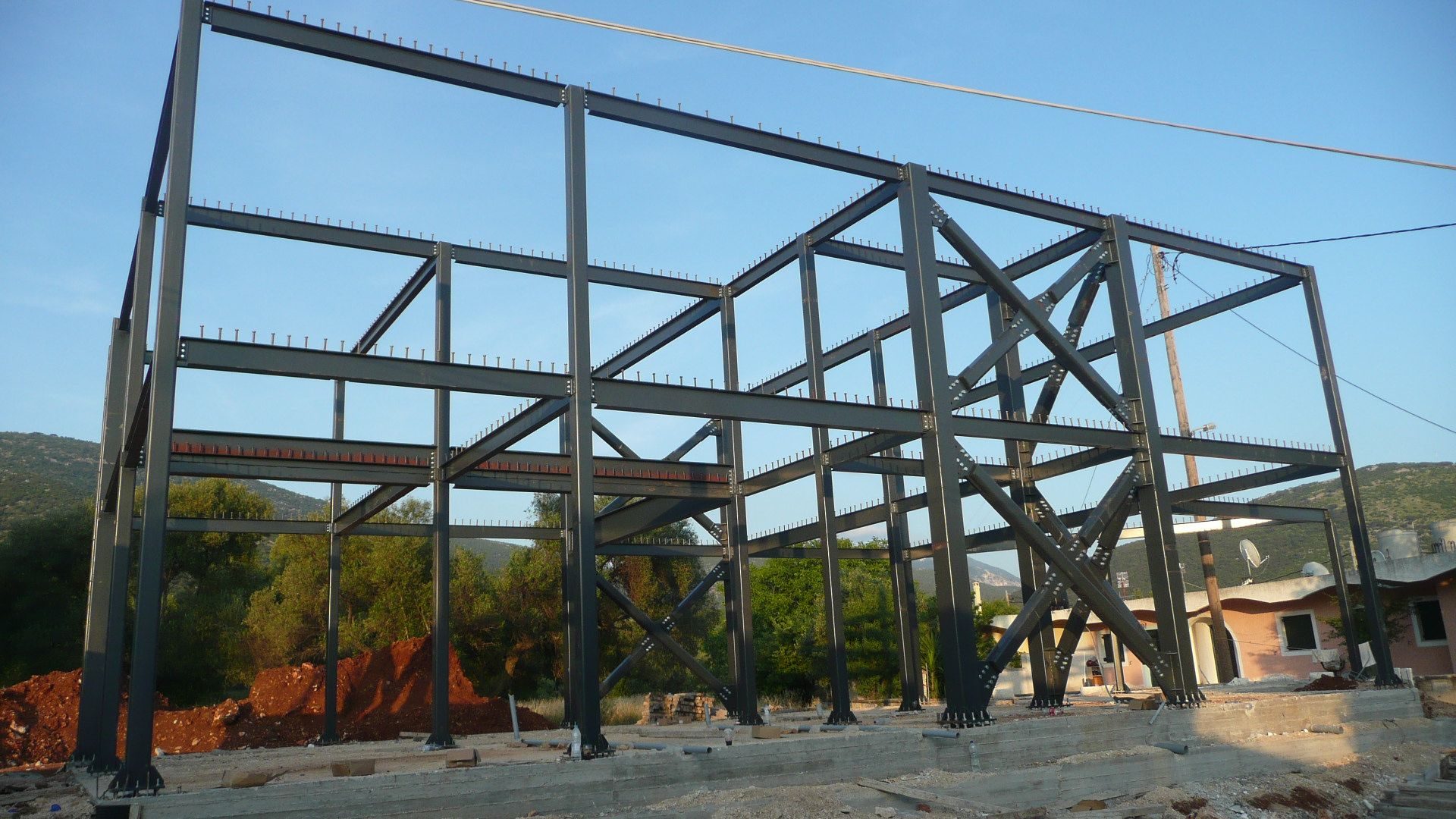

Start of erection of the steel frame with cross bracing in Razata, Kefalonia

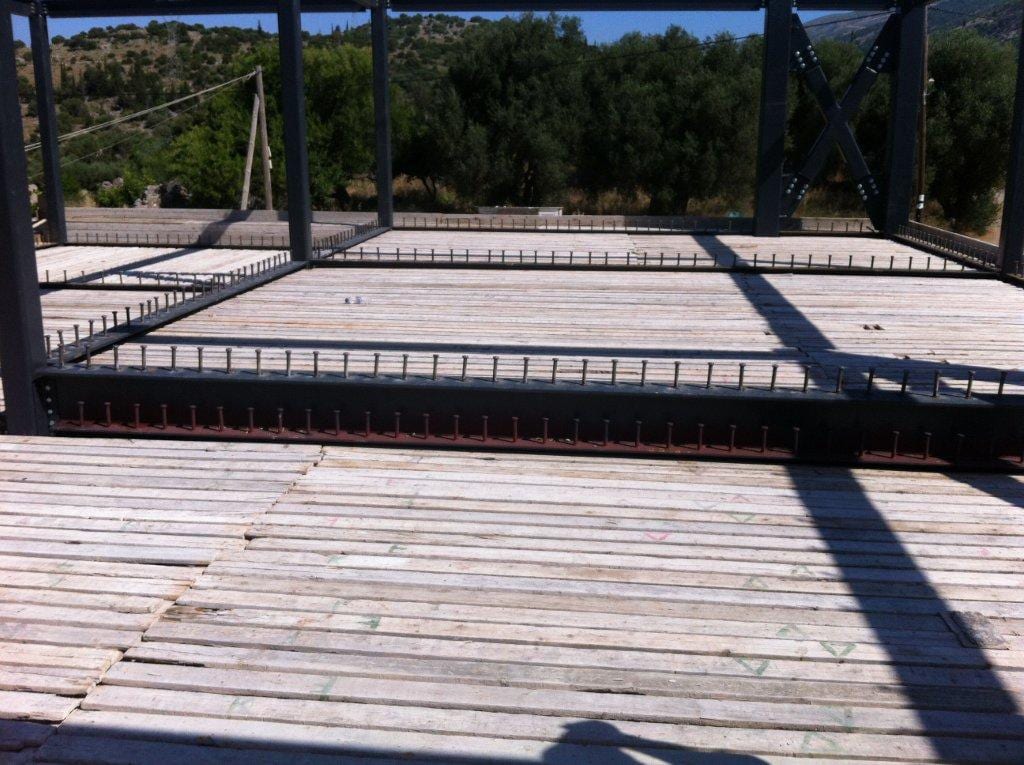

Formwork for the split-level composite slab on steel beams in Razata, Kefalonia — Split-level slab in steel and concrete construction with 2 beams. A small challenge on this building was the different slab levels on the upper floor, handled with a double beam

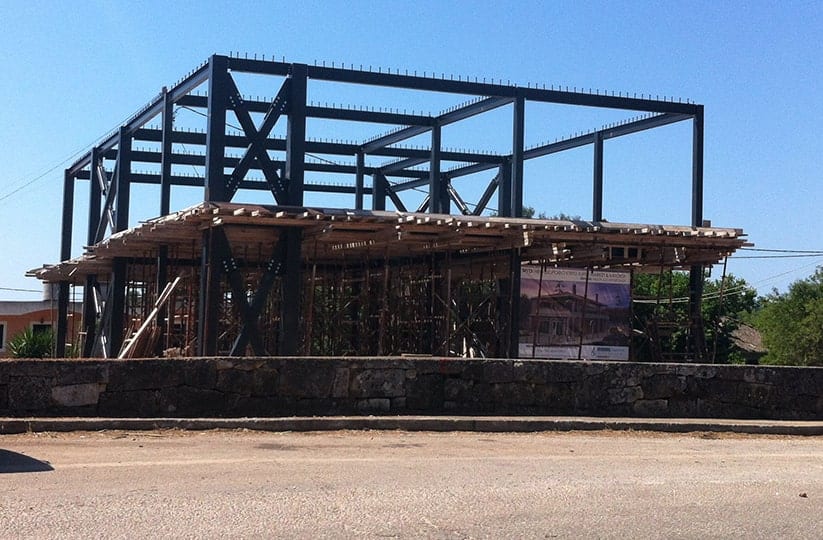

The steel and concrete structure of the store and house in Razata, Kefalonia, seen from the road

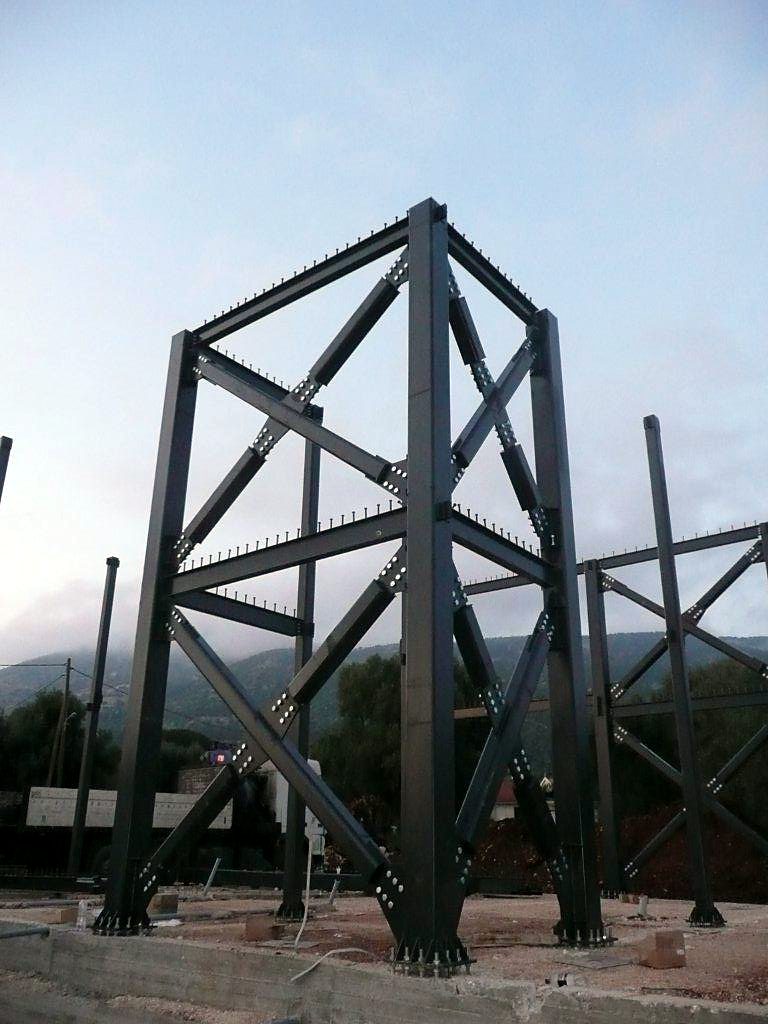

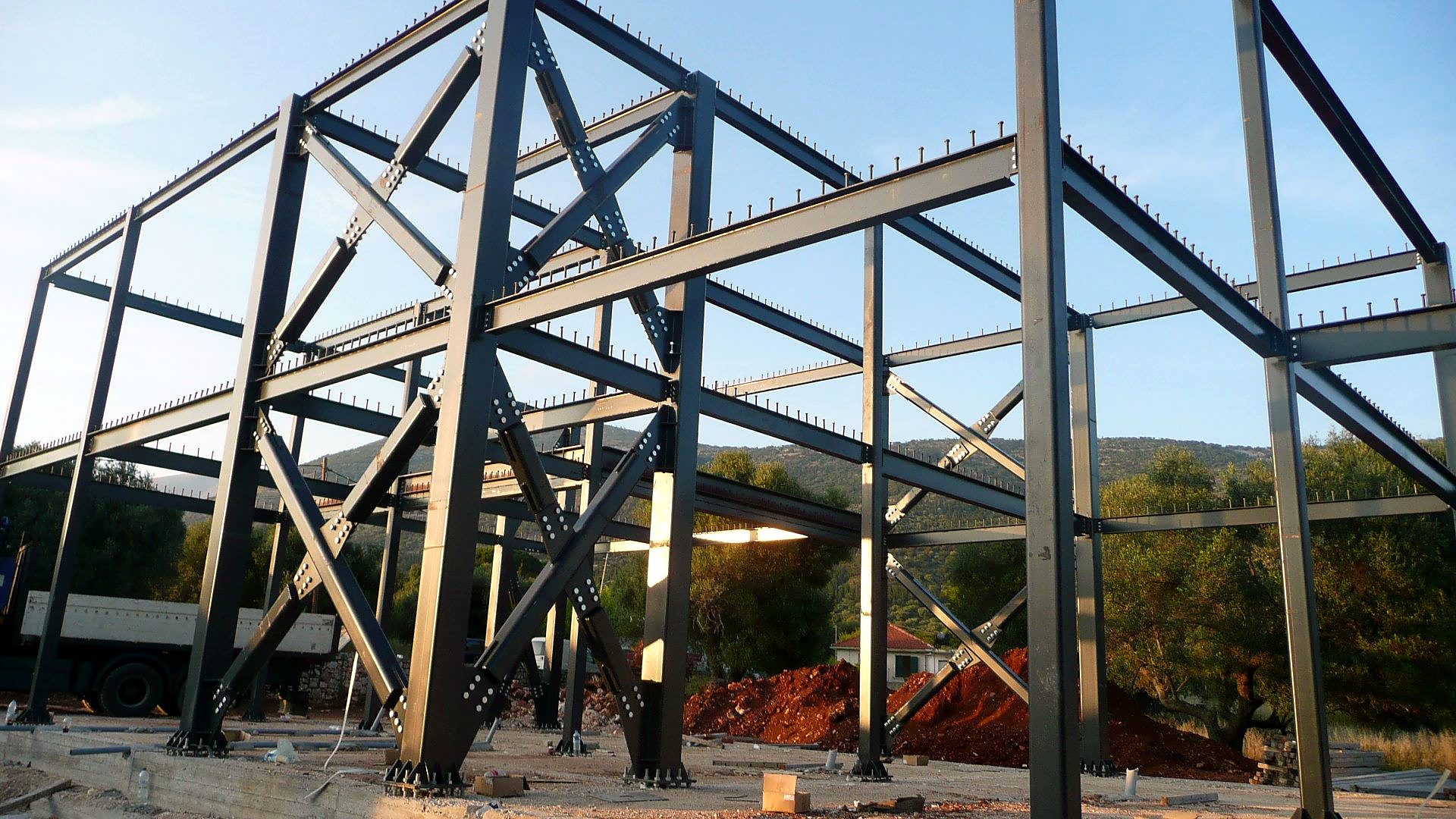

Steel braced core with bolted cross bracing in the store and house building in Razata, Kefalonia — Braced core with bolted cross bracing

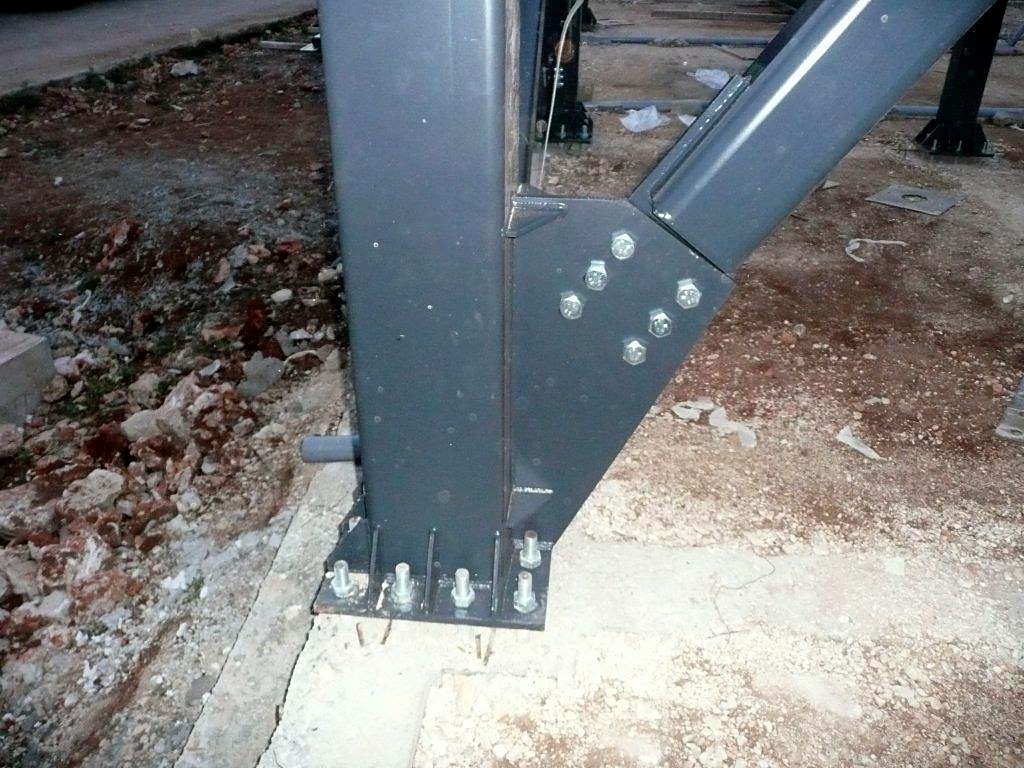

Steel column base with anchor bolts and a bolted gusset plate for the diagonal, building in Kefalonia — Column base with a bolted gusset plate for the diagonal

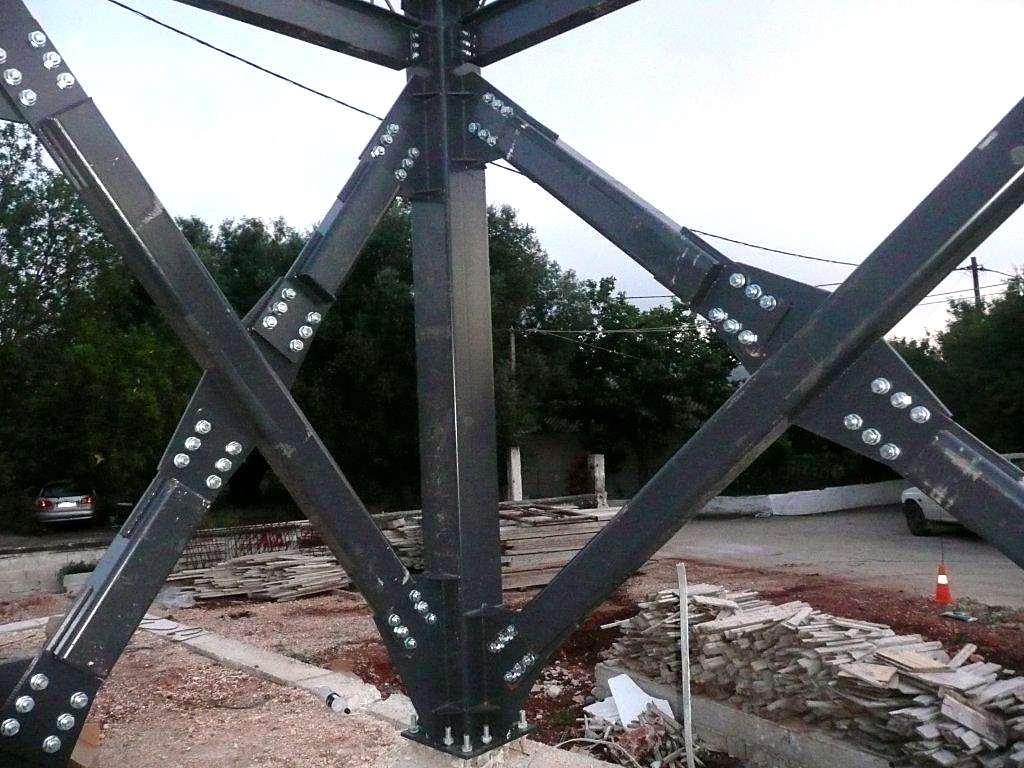

Bolted cross bracing connection at a steel column, building in Razata, Kefalonia — Bolted cross bracing connection at the column

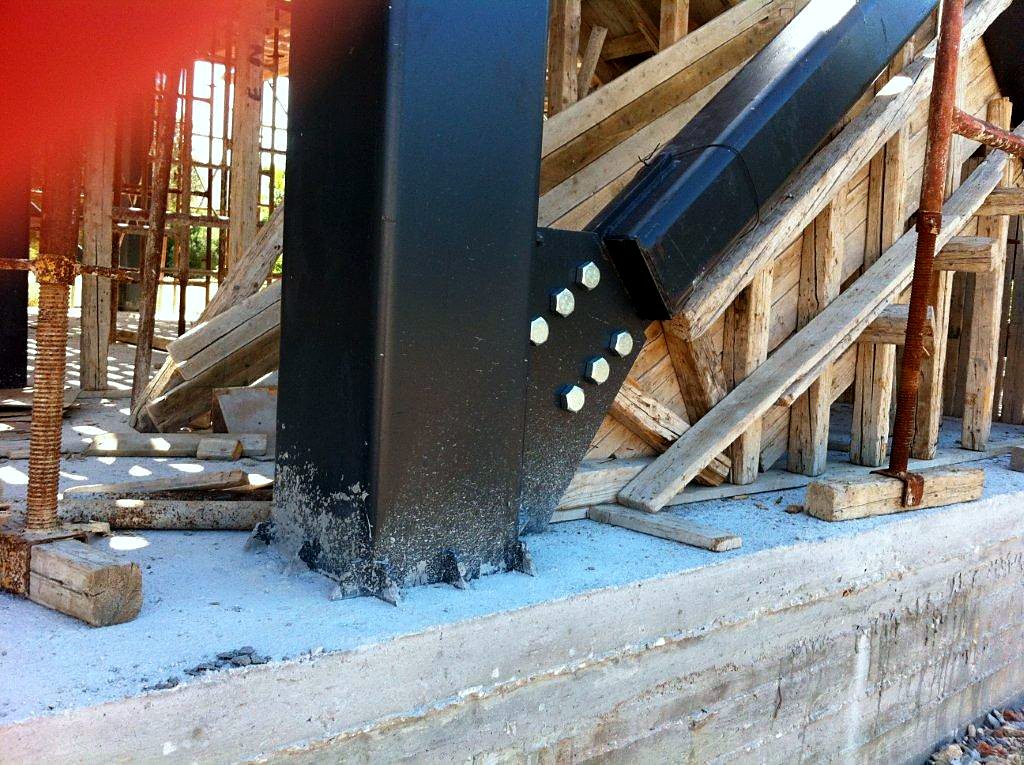

Fixed base of a steel column with a bolted diagonal on a concrete footing in Kefalonia — Fixed column base with a bolted diagonal

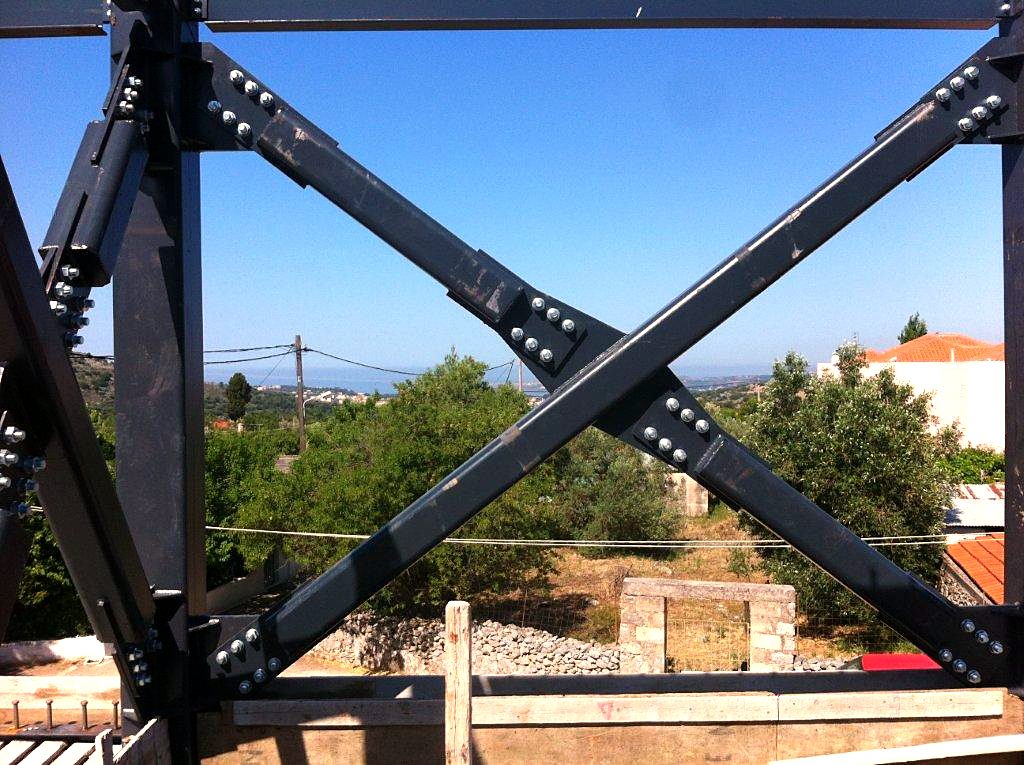

Bolted cross bracing in a steel upper-floor frame, building in Razata, Kefalonia — Bolted cross bracing on the upper floor

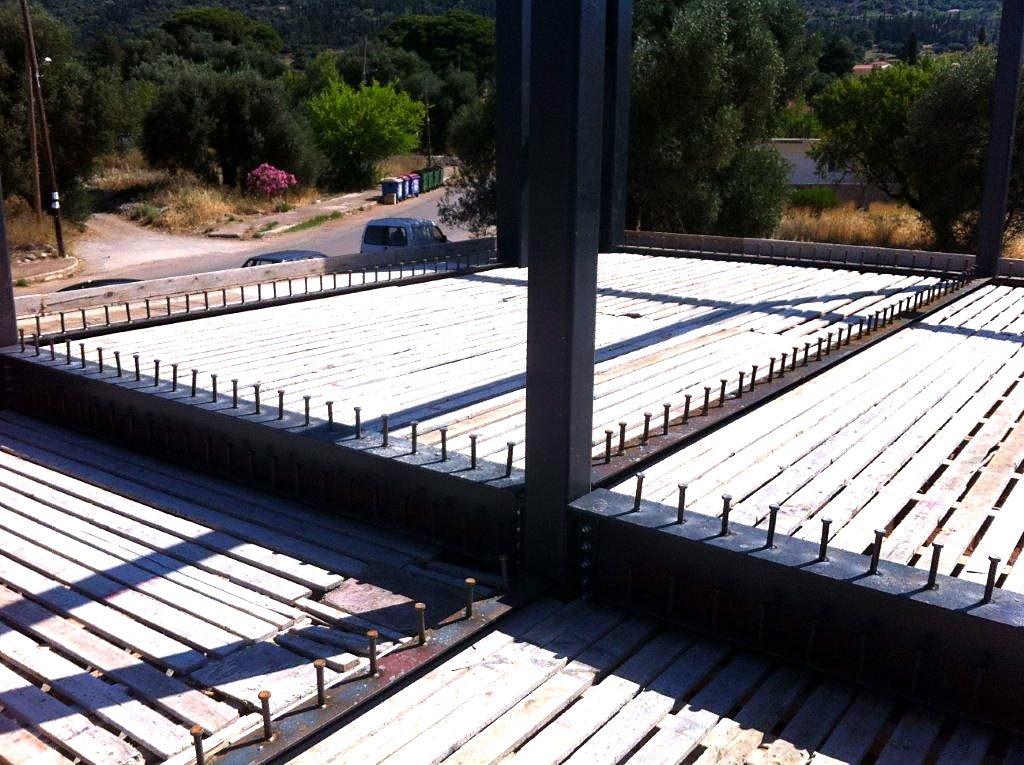

Shear studs on steel beams with composite slab formwork, building in Razata, Kefalonia — Shear studs on the beams before the slab pour

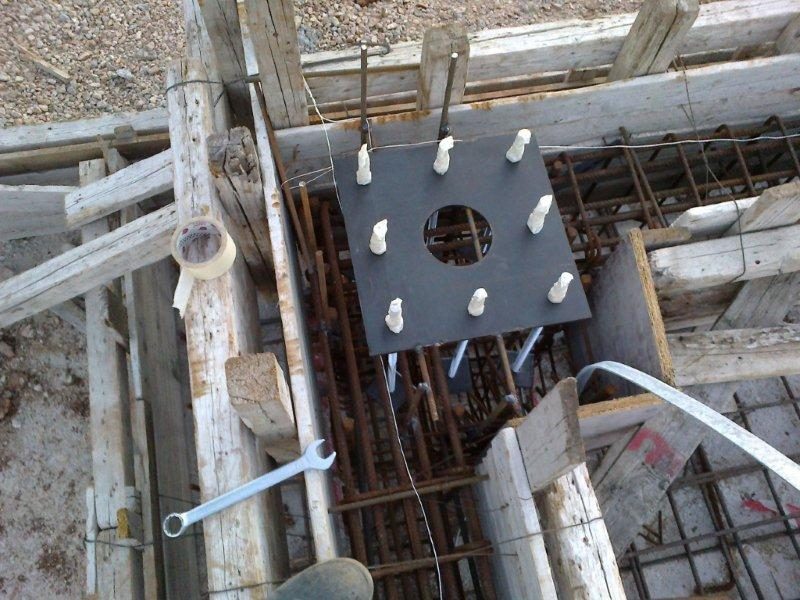

Anchoring the steel building, store and house in Razata, Kefalonia. Dionysis Gianatos — Anchoring the steel building

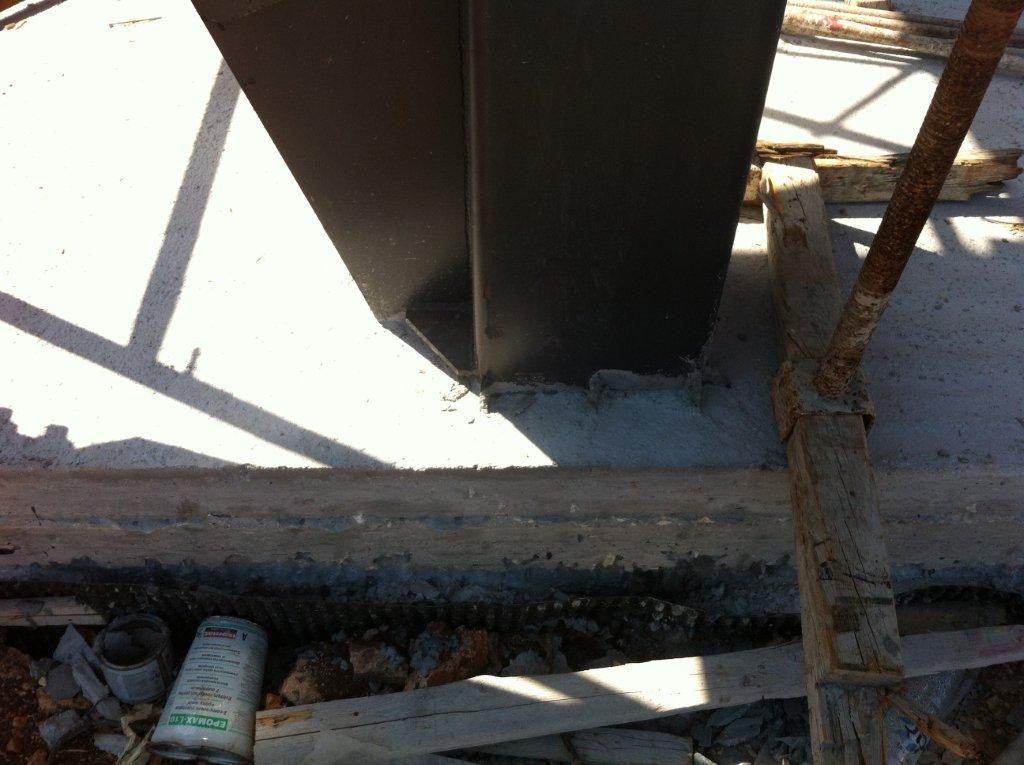

The frame set lower so that the base stiffener plates are covered, store and house in Razata, Kefalonia. Dionysis Gianatos — The frame set lower so that the base stiffener plates are covered

Frame completed, store and house in Razata, Kefalonia. Dionysis Gianatos — Frame completed
